New Aluminum Billet Oil Fill and Oil Filter Caps for BMK11 By-Pass Filtration System

AMSOIL now offers new by-pass components to ease the installation of the BMK11 By-Pass Filtration System in three popular diesel engines: the Ford 6.0L Power Stroke™, the Dodge 5.9L Cummins and the General Motors 6.6L Duramax.

Engine compartments are becoming increasingly cramped, leaving little room for after-market additions and improvements. The BMK11 is a single remote by-pass filter system that fits into much smaller spaces than the AMSOIL Dual-Remote By-Pass System.

Ford 6.0L Power Stroke™ Diesels

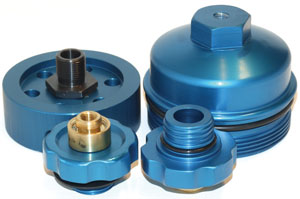

To ease installation of the BMK11 bypass filter mount on 2003 and later model Ford pickups equipped with the 6.0L Power Stroke™ diesel engine, AMSOIL provides the new Aluminum Billet Oil Filter Cap (BK1101), the Aluminum Billet Oil Fill Cap (BK1102) and the 90-degree JIC Elbow (BP242). These new high-quality billet aluminum caps replace the original equipment manufacturer (OEM) filter cap and oil fill cap. The new caps have holes tapped in them that accept the JIC elbows for hose connectors.

Dodge 5.9L Cummins Diesels
To ease installation of the BMK11 bypass filter mount on 2004 and later model Dodge pickups equipped with the 5.9L Cummins diesel engine, AMSOIL offers the new 1/8" NPT - 1/4" JIC fitting (BP241), the Aluminum Billet Oil Fill Cap for Dodge 5.9L Cummins diesels (BK1301) and the 90-degree JIC Elbow (BP242). The BP241 fits onto the existing plug on top of the OEM full-flow filter mount, and the addition of the BK1301 eases the installation of the oil return line.

General Motors 6.6L Duramax Diesels
To provide GM Duramax owners the same ease of installing the BMK11 bypass filter mount, AMSOIL is now offering an oil filter “Sandwich” adapter (BK1201).

The Sandwich adapter is an anodized billet aluminum adapter that screws on to the present full flow oil filter nipple located on the engine block. The full flow filter is then simply spun on to the adapter. The Sandwich adapter has an orifice to provide high-pressure oil feed for the BMK11. Like the other diesel applications, AMSOIL now offers an Aluminum Billet Oil Filler Cap for (BK1202) to ease the installation of the oil flow from the BMK11 back to the engine. To complete an installation, the following components must be purchased separately:

    1. Aluminum oil filter Sandwich Adapter with o-ring (BK1201)
    2. Aluminum Billet Oil Filler Cap for GM Duramax (BK1202)
    3. Two 90 degree JIC Elbows (BP242)
    4. Single Remote By-pass system (BMK11)
    5. By-pass filter (EaBP90, EaBP100, or EaBP110, as space dictates)
